Mouse over for tips

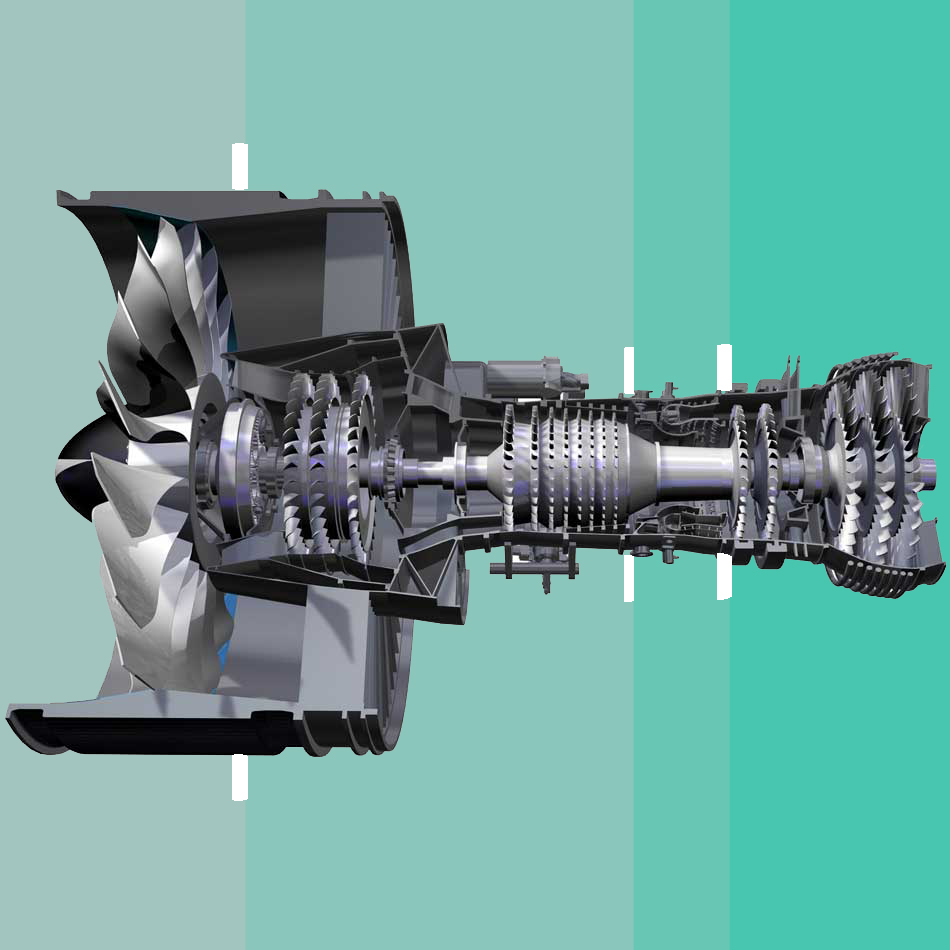

N1 fan blades driven by exhaust gasses of last blade sets.
Compressor section part of outer shaft assembly.
Combuster hot section fuel air mix and ignition.
Turbine N2 and N1 inner shaft drives large front n1 fan blades for bypass air.
